Items |
Unit |

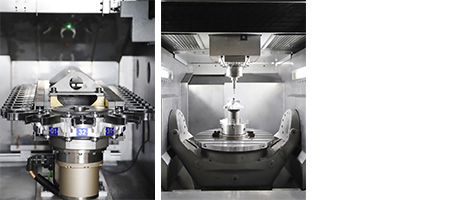

KDU800VT |
|
Processing range |
|
|
|
X axis travel |
mm |
800 |
|
Y axis travel |
mm |
900 |
|
Z axis travel |
mm |
600 |
|
A axis rotation angle |
Deg. |
-120～+120 |
|
C axis rotation angle |
Deg. |
360 |
|
Distance from spindle nose to worktable |
mm |
150-750 |
|
Max. processing dia. & height of workpiece |
mm |
Φ800×500 |
|
Work table |
|
Taiwan HIWIN |
|
Table size |
mm |
Φ800 |
|
Max.swing dia. on the worktable |
mm |
Φ1000 |
|
Table load |
kg |
1200 |
|
T-slot (number x width x spacing) |
mm |
7×18×100 |
|
Feed |
|
|
|
X/Y/Z axis rapid travel speed |
m/min |
24/24/24 |
|
Number of Y-axis drive shafts |
|
2 |
|
X/Y/Z axis ball screw |
|
diameter 50, pitch 12 |
|
X/Y/Z axis roller guide rail |
mm |
55/65/45 |
|
Max. speed of A axis |
rpm |
60 |
|
Max. speed of c axis |
rpm |
90 |
|
X/Y/Z axis motor torque |
Nm |
48/96/48 |
|
A-axis rated/Max. torque |
Nm |
4400/7800 |
|
C-axis rated/Max. torque |
Nm |
2200/3900 |
|
A/C-axis drive mode |
|
Torque motor |
|
Number of A-axis drive motors |
|
2 |
|
Spindle |
|
Motorized spindle（German KESSLER） |
|
Spindle Max. speed |
rpm |
20000 |
|
Spindle rated power |
kW |
25 |
|
Spindle Max. torque |
Nm |
150 |
|
Tool shank specifications |
|
HSK-A63 |
|
Tool magazine |
|
Taiwan SANJET |
|
Tool magazine type |
|
chain type |
|
Tool magazine capacity |
|
32 |
|
Max. tool diameter (adjacent/adjacent space) |
mm |
75/125 |
|
Max. tool length |
mm |
300 |
|
Max. tool weight |
kg |
8 |
|
Accuracy |
|
|
|
X/Y/Z repeat positioning accuracy |
mm |
≤0.006 |
|
X/Y/Z positioning accuracy |
mm |
≤0.008 |
|
A/C repeat positioning accuracy |
mm |
≤6 |
|
A/C positioning accuracy |
mm |
≤12 |
|
Others |
|
|
|
Protection system |
|
fully enclosed protection with skylight |
|
Overall dimensions （L×W×H） |
mm |
5300×3100×3900（Z-axis highest point） |
|
Machine tool footprint（L×W） |
mm |
7300×7300 |
|
Machine weight |
kg |
about 25000 |
|
Controller system |
|
newest system
|
