Item |
Unit |

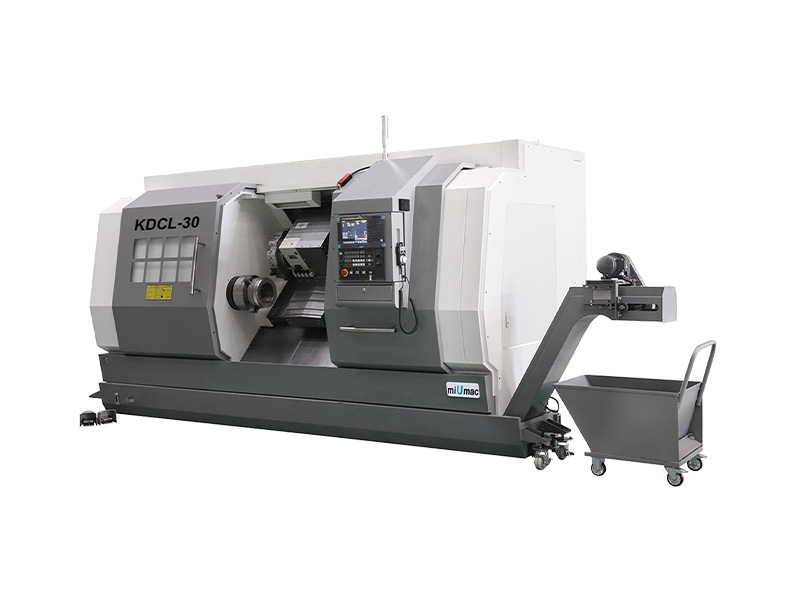

KDCL-30 |
KDCL-30H |
KDCL-30Y |
|
Max. swing over bed |
mm |
Ø650 |
Ø650 |
Ø650 |
|
Max. cutting Dia.for disc parts |
mm |
Ø500 |
Ø410 |
Ø400 |
|
Max. cutting Dia.for axle parts |
mm |
Ø370 |
Ø370 |
Ø400 |
|
Max. cutting length for axle parts |
mm |
900/1400/1900/2900 |
900/1400/1900/2900 |
800/1300/1800/2800 |
|
Spindle bore |
mm |
Ø90 |
Ø90 |
Ø90 |
|
Spindle nose |
/ |
A2-8 |
A2-8 |
A2-8 |
|
Spindle Max. speed |
rpm |
2500 |
2500 |
2500 |
|
Max. travel for X axis |
mm |
270 |
270 |
270 |
|
Max. travel for Z axis |
mm |
1050/1550/2050/3050 |
1050/1550/2050/3050 |
1050/1550/2050/3050 |
|
X/Y/Z axis rapid feed rate |
m/min |
16/-/20 |
16/-/20 |
16/10/12 |
|
X/Y/Z axis servo motor power |
kW |
3/-/3 |
3/-/3 |
3/1.8/3 |
|
No. of tool post station |
/ |
12-station |
12-station |
12-station (BMT65) |
|
live motor power |
kW |
/ |
3.7/5.5 |
4.5 |
|
Standard turning tool holder |
mm |
25×25 |
25×25 |
25×25 |
|
Max. boring tool holder |
mm |
Ø40 |
Ø40 |
Ø40（ER32） |
|
Tailstock sleeve Dia. |
mm |
Ø100 |
Ø100 |
Ø100 |
|
Tailstock sleeve travel |
mm |
200 |
200 |
200 |
|
Tailstock sleeve bore taper |
/ |
MT NO.6 |
MT NO.6 |
MT NO.6 |
|
Main motor power |
kW |
30/37 |
15/18.5 |
15/18.5 |
|
X/Z positioning accuracy |
mm |
≦0.012/0.012 |
≦0.012/0.012 |
≦0.012/0.012 |
|
X/Z repeat positioning accuracy |
mm |
≦0.006/0.008 |
≦0.006/0.008 |
≦0.006/0.008 |
|
Hydraulic chuck size |
/ |
12” |
12” |
12” |
|
1m Overall dimensions(LxWxH) |
mm |
5500x1980x2260 |
5500x1980x2260 |
5570×2220×2495 |
|
1m Net weight |
kg |
7000 |
7500 |
8500 |
The specifications, text descriptions, confiqurations, pictures, colors, etc. given herein are subject to alternation without notice and thus wthout any obligation.
